Jcally JM7 USB Type-C to 3.5mm DAC Dongle

Jcally JM7 USB Type-C to 3.5mm DAC Dongle

The JCALLY JM7 is an ultra-compact, high-performance Digital-to-Analog Converter (DAC) dongle designed for a significant audio upgrade on devices lacking a 3.5mm jack. Powered by the renowned CX31993 DAC chip, it bypasses internal audio hardware to deliver high-fidelity sound.

With plug-and-play simplicity, the JM7 supports Hi-Res audio up to 32-bit/384kHz. Its 8-core silver-plated cable ensures minimal signal loss, while the built-in microphone channel makes it a versatile companion for high-quality music streaming, clear voice calls, and immersive mobile gaming.

Key Features

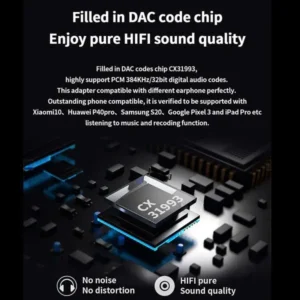

• Hi-Res CX31993 DAC Chip: Provides superior digital-to-analog conversion for clean, detailed audio.
• Studio-Quality Decoding: Supports PCM up to 32-bit / 384kHz, perfect for lossless streaming services.
• Premium Build Cable: Features an 8-core 5N OFC silver-plated cable to maintain signal purity and durability.
• In-Line Mic & Controls: Supports TRRS headsets, allowing for full microphone and media control functionality.
• Powerful Output: The internal amplifier delivers enough power to drive a wide variety of IEMs and portable headphones.
• Universal Compatibility: Works seamlessly with Android, Windows, and macOS devices supporting USB audio.
• Ultra-Portable Design: Weighing just 6.5g, it is a lightweight solution for high-quality audio on the go.

Specifications

• Brand: JCALLY
• Model: JM710
• Input Connector: USB Type-C (Male)
• Output Connector: 3.5 mm (Female, TRRS supported)
• DAC Chip: CX31993
• PCM Support: 32-bit / 384 kHz
• Audio Performance:
  • SNR: ≈ 117 dB
  • THD+N: ≈ −95 dB
• Cable Material: 8-Core 5N OFC Silver-Plated
• Length: 110 mm ± 10 mm
• Weight: 6.5 g ± 0.5 g
