JCALLY JM7 MAX CX31993 Portable DAC & AMP​

JCALLY JM7 MAX CX31993 Portable DAC & AMP​

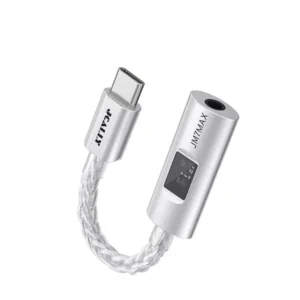

The JCALLY JM7 MAX is a high performance Portable USB DAC and AMP designed to elevate your audio experience. It features the advanced CX31993 DAC Chipset supporting 32bit/384kHz PCM decoding. Paired with a powerful SGM8262 OPAMP, it delivers clean, strong output up to 228mW (16 ohms). Built with a 5 axis CNC Machined Aluminium Chassis and an 8 core, 448 core silver plated copper cable, the JM7MAX ensures ultra low distortion and a pure, high fidelity sound, all in a compact, handy design.

Key Features

• High Performance DAC Chipset: Equipped with the advanced CX31993 DAC Chipset from CONEXANT, supporting high resolution audio processing up to 32bit/384kHz PCM decoding.
• Powerful SGM8262 OPAMP: Features an advanced SGM8262 OPAMP Chipset that delivers a strong output thrust of up to 228mW (16 ohms), making it highly compatible with various IEMs and Headphones.
• Superior Audio Clarity: Boasts a low noise floor, high SINAD (Signal to Noise and Distortion) values, and ultra low THD plus N distortion, ensuring a cleaner output with enhanced micro details and a pure black background.
• Premium CNC Machined Chassis: Built with a durable and appealing 5 axis CNC Machined Aluminium Chassis that features a transparent window to showcase the internal audio chipsets.
• High Purity Connector Cable: Includes a fixed 8 core, 448 core Type C connector cable made of high purity silver plated copper wires for true lossless transmission and enhanced resolution.

JCALLY JM7 Max Portable USB DAC & AMP – Specifications

• Brand: JCALLY
• Model: JM7 Max
• Product Type: Portable USB DAC and Amplifier
• DAC Chipset: CONEXANT CX31993
• OPAMP Chipset: SGM8262
• Maximum Decoding: 32-bit / 384kHz PCM
• Maximum Output Power: Approximately 228mW (at 16Ω)
• Output Impedance: Around 0.5Ω
• Chassis Material: 5-Axis CNC Machined Aluminum Alloy
• Connector Cable: 8-core, 448-strand silver-plated copper Type-C cable
• Microphone Support: Yes
